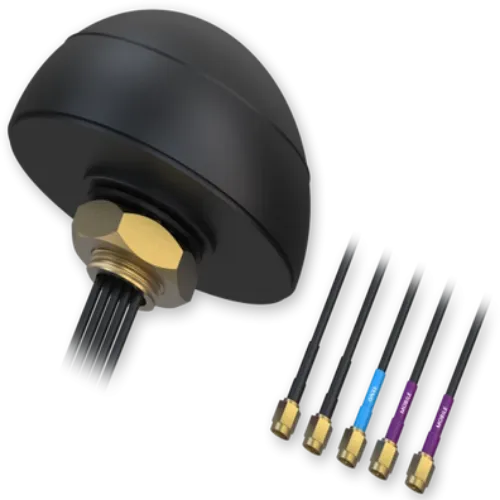

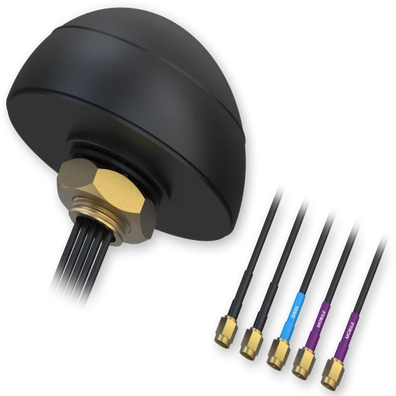

The PR1KCO28 is an all-in-one, roof-mount antenna designed to boost connectivity for industrial-grade routers and gateways. It integrates LTE MIMO, dual-band Wi‑Fi MIMO, and GNSS systems into a single rugged device—ideal for harsh environments and mobile installations like vehicles, IoT sites, smart cities, and more
Multi‑Band Performance
- LTE MIMO: Covers 698–960 MHz & 1710–2690 MHz; 2× SMA male connectors; 3 dBi gain; VSWR < 3.0
- Wi‑Fi MIMO: Dual‑band (2.4 & 5 GHz); 2× RP‑SMA male connectors; 2 dBi gain; VSWR < 2.5
- GNSS (GPS/GLONASS): 1575.42–1610 MHz; RHCP polarization; 28 ± 2 dB amplified; low noise < 1.5 dB; single SMA male connector
Rugged Construction & Mounting
- Durable ABS dome housing (Ø 110 × 55 mm), weighs ~550 g
- IP65/ weatherproof rating, UV-resistant—ready for outdoor use
- Fits securely via screw-mount; each of the five RG174 cables is 3 m long
Electrical & Mechanical Specs
|
Specification
|
Details
|
|
Input Voltage
|
3–5 V DC (GNSS LNA)
|
|
GNSS Current
|
< 15 mA
|
|
Impedance (all)
|
50 Ω
|
Compatibility & Use Cases
- Seamlessly pairs with Teltonika routers: RUT200, RUT241/240, RUT360/901/906, RUT951/956, and RUTX09/11/12/14
- Ideal for enhancing signal strength and reliability in transportation, industrial, smart-city, and remote IoT settings.
🔧 Why Choose the PR1KCO28?
- Integrated design saves roof space and reduces cable clutter.
- MIMO technology on both cellular and Wi‑Fi ensures faster, more reliable performance.
- Amplified GNSS improves satellite tracking for accurate location data.
- Robust build handles extreme temperatures (–40 °C to +85 °C) and outdoor exposure
The Teltonika PR1KCO28 is a premium combo antenna that delivers versatile connectivity in one compact, durable package. Whether you're deploying in vehicles, industrial sites, or remote areas, it offers a reliable boost in LTE, Wi‑Fi, and satellite reception—all backed by Teltonika’s trusted design.
